Discover how horizontal and vertical CNC foam cutting machines revolutionize productivity for PU, EPS, EVA, and EPE materials. Expert insights on specifications, pricing, and optimal selection for your manufacturing needs.
In today's competitive foam manufacturing landscape, precision, speed, and material versatility define success. Whether you're producing mattress foam, protective packaging, or custom inserts, the choice between traditional cutting methods and advanced CNC foam cutting machines can make or break your operational efficiency.
Traditional foam cutting methods—hot-wire systems, manual blades, and router-based cutters—often struggle with consistency, waste management, and production scalability. Modern CNC (Computer Numerical Control) foam cutting machines eliminate these pain points by offering:
This comprehensive guide examines CNC horizontal foam cutting machines and vertical continuous foam cutting systems, providing data-driven insights to help you make informed purchasing decisions. We'll explore specifications, productivity metrics, pricing structures, and operational best practices backed by industry standards.

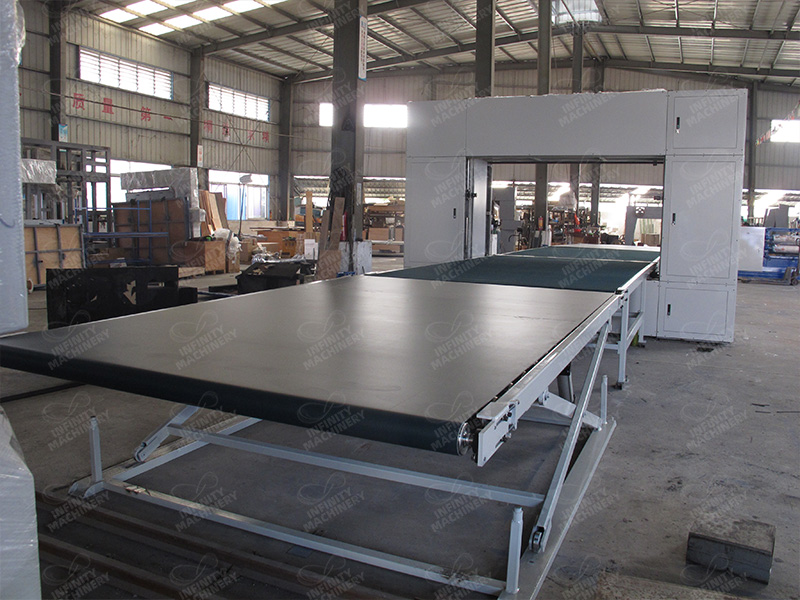

High-precision CNC horizontal system featuring automated blade positioning, suitable for continuous foam block cutting with thickness range 10-500mm. Ideal for mattress and upholstery foam production.

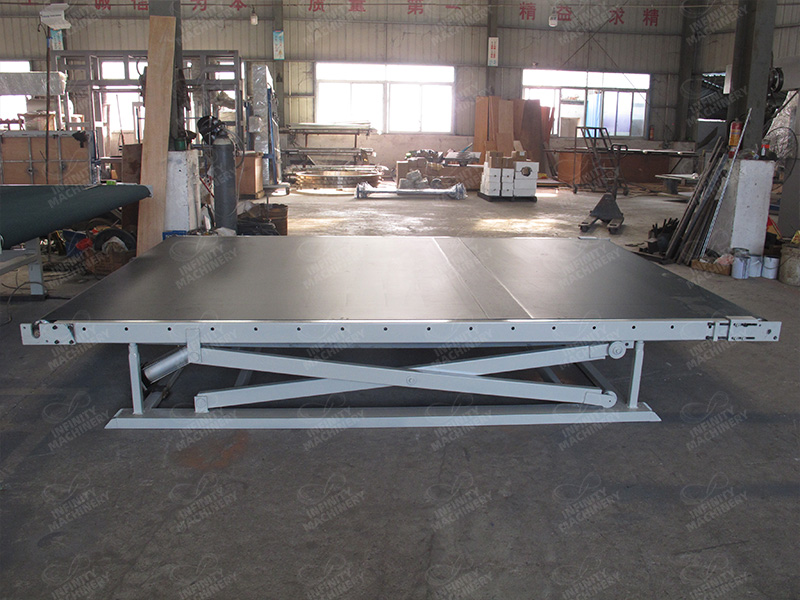

Advanced cutting head assembly with oscillating blade technology, delivering precise contour cutting at speeds up to 50m/min. Features automatic tool height adjustment and dust extraction system.

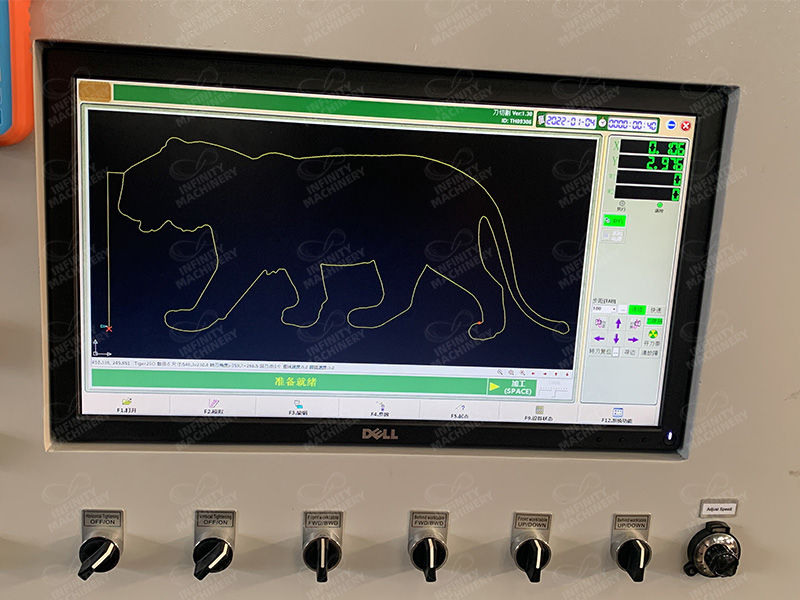

User-friendly touchscreen control system with CAD file import capability (DXF, DWG formats). Real-time production monitoring, parameter adjustment, and multi-language support for global operations.

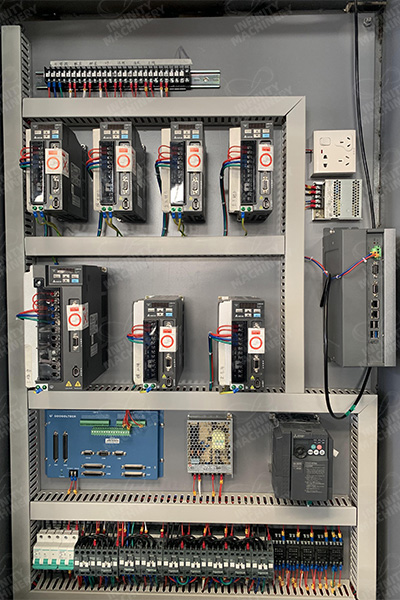

Robust electrical infrastructure with safety-certified power distribution, overload protection, and emergency stop systems. Compliant with CE and international electrical safety standards.
Production efficiency is the cornerstone of profitable foam manufacturing. Understanding cutting speed, throughput capacity, and yield optimization helps you calculate ROI and production capacity accurately.
Throughput in CNC foam cutting machines is measured across three critical dimensions:
| Machine Type | Cutting Speed | Thickness Range | Hourly Output (PU Foam) | Material Waste |
|---|---|---|---|---|
| CNC Horizontal Blade | 30-50 m/min | 10-500 mm | 8-12 m³/hour | 3-5% |
| Vertical Continuous System | 20-40 m/min | 20-400 mm | 6-10 m³/hour | 4-7% |
| CNC Contouring Machine | 15-35 m/min | 5-200 mm | 4-7 m³/hour | 5-8% |
| Traditional Hot-Wire | 5-15 m/min | 10-300 mm | 2-4 m³/hour | 15-25% |
Different foam materials exhibit varying cutting characteristics that directly impact throughput:
Density: 18-65 kg/m³
Optimal Speed: 35-50 m/min
Density: 10-40 kg/m³
Optimal Speed: 25-40 m/min
Density: 20-80 kg/m³
Optimal Speed: 30-45 m/min
Understanding technical specifications is crucial for matching machine capabilities to your production requirements. Here's a comprehensive breakdown of key parameters that define machine performance.
| Parameter | Definition | Typical Range | Impact on Production |
|---|---|---|---|
| Cutting Width | Maximum width of material that can be processed | 1000-3200 mm | Determines block size capacity and production flexibility |
| Cutting Thickness | Range of material depths the machine can handle | 10-500 mm | Affects versatility for different product lines |
| Cutting Speed | Maximum linear travel speed of cutting tool | 20-50 m/min | Directly correlates with hourly throughput |
| Positioning Accuracy | Precision of tool placement | ±0.1-0.5 mm | Critical for complex contours and tight tolerances |
| Power Consumption | Electrical demand during operation | 5-25 kW | Affects operational costs and electrical infrastructure requirements |
| Control System | Type of CNC controller and interface | PLC/CNC/DSP | Determines automation level, file compatibility, and ease of use |
| Machine Footprint | Physical dimensions of equipment | 3-8 m length | Impacts facility layout and space planning |
Modern CNC foam cutting machines are engineered for multi-material versatility. Here's how different foam types align with machine capabilities:
Polyurethane foam cutting represents the highest-volume application in the foam cutting industry. Here's what makes CNC machines ideal for PU processing:
A mid-size mattress manufacturer upgraded from manual cutting to a CNC horizontal foam cutting machine with the following results:
Understanding the total cost of ownership extends beyond initial purchase price. Let's examine pricing structures, configuration options, and long-term financial considerations.
| Machine Category | Price Range (USD) | Cutting Width | Key Features | Best For |
|---|---|---|---|---|
| Entry-Level CNC | $15,000-$30,000 | 1000-1500 mm | Basic CNC control, single blade, manual feeding | Small workshops, low-volume production |
| Mid-Range Horizontal | $35,000-$65,000 | 1800-2400 mm | Advanced CNC, auto feed, CAD integration | Medium manufacturers, multi-product lines |
| Industrial Vertical | $50,000-$95,000 | 2000-3000 mm | Continuous cutting, multi-blade systems | High-volume block processing |
| Premium Contouring | $80,000-$150,000 | 2400-3200 mm | 5-axis cutting, laser positioning, IoT connectivity | Complex shapes, automotive, aerospace |
| Fully Automated Line | $200,000-$500,000+ | Custom | Robotic handling, integrated conveyor, quality inspection | Mass production facilities |
Operational expenses significantly impact long-term profitability. Here's a detailed breakdown of recurring costs over a 5-year ownership period:
| Cost Category | Annual Cost | Notes |
|---|---|---|
| Power Consumption | $2,400-$4,800 | Based on 8 kW average, $0.12/kWh, 8 hours/day operation |
| Blade Replacement | $1,200-$3,600 | 4-12 blades/year depending on material and usage |
| Preventive Maintenance | $1,800-$3,200 | Lubrication, belt replacement, calibration |
| Dust Collection Filters | $400-$800 | Quarterly filter changes |
| Software Updates | $500-$1,200 | Optional annual support contracts |
| Total Annual Operating Cost | $6,300-$13,600 | Excludes labor and material costs |
5-year ownership comparison between mid-range CNC machine ($50,000) vs traditional manual cutting:
Traditional Method 5-Year Cost: $15,000 (manual tools) + $180,000 (labor) + $65,000 (material waste) = $260,000
Net Advantage of CNC: $312,000 over 5 years
Mattress production demands specific machine configurations. Use this decision framework to match requirements with optimal specifications:
Proper installation and operation procedures are essential for maximizing machine lifespan and maintaining cutting quality. This comprehensive guide covers everything from initial setup to daily operations.
Choosing between horizontal and vertical configurations depends on your specific application requirements. Here's a detailed comparison to guide your decision:
| Aspect | Horizontal Blade Systems | Vertical Continuous Systems |
|---|---|---|
| Cutting Direction | Horizontal blade moves through foam block | Vertical blade cuts as material feeds continuously |
| Primary Application | Block slicing into sheets, mattress production | Continuous sheet cutting, high-volume packaging |
| Throughput | 8-12 m³/hour (intermittent processing) | 6-10 m³/hour (continuous operation) |
| Flexibility | Excellent for variable thicknesses and custom cuts | Optimized for repetitive patterns and standard sizes |
| Floor Space | Larger footprint (6-10m length typical) | More compact vertical design |
| Operator Skill Required | Moderate (setup and material handling) | Lower (automated feeding systems) |
| Price Range | $35,000-$95,000 | $50,000-$120,000 |
| Ideal For | Mattress factories, custom foam products | Packaging manufacturers, insulation producers |
