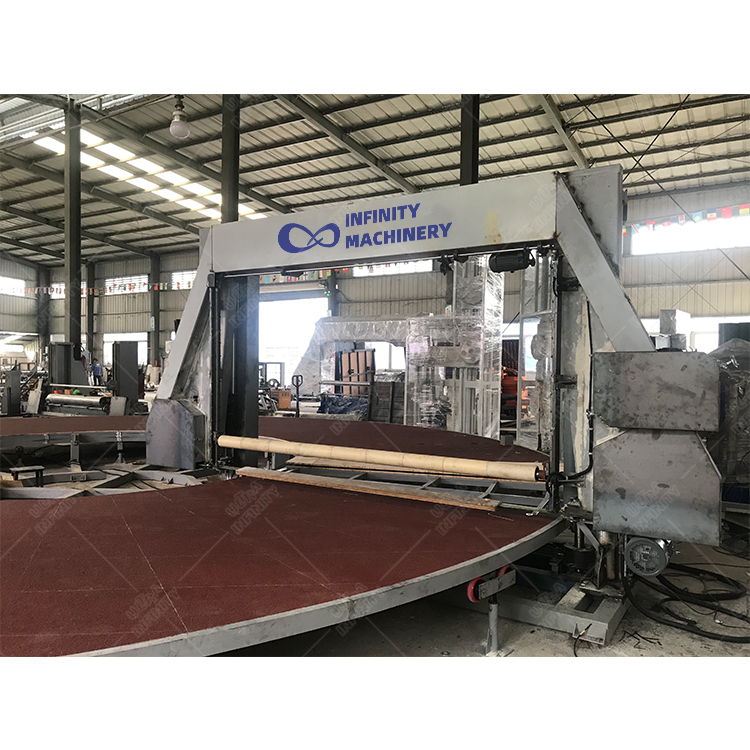

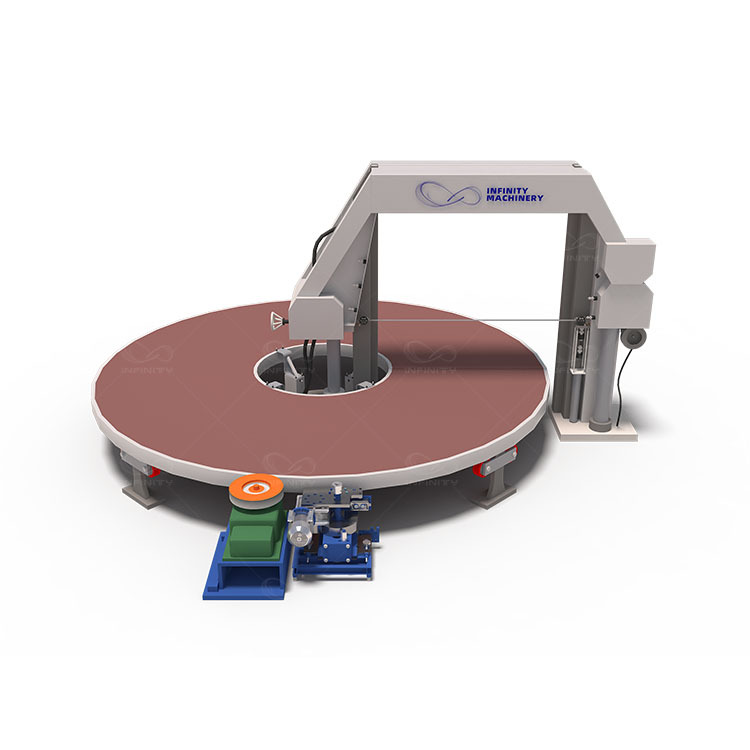

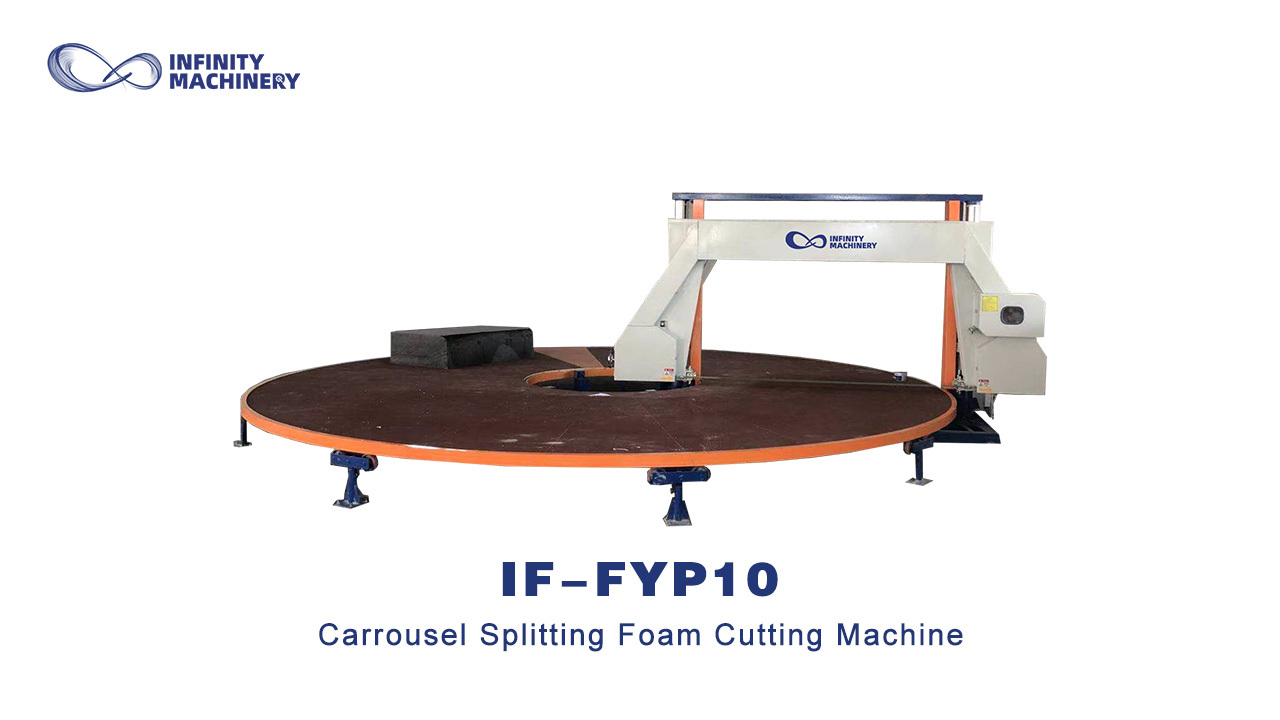

►IF-FYP6/7/10 Carrousel Splitting Foam Cutting Machine is mostly put many block foam on the worktable for cutting slices at the same time.Using fully automatic digital control, by setting the value of the control box to cut the required sponge thickness.
►The worktable runs automatically and the rotation speed is adjustable, so that the production efficiency is higher with high cutting precision.
►Options of a vacuum device will be provided which can hold the foam firmly in place and and give better cutting results. We also offer two blades to choose from, which ensure safety and better cutting of soft foams.
Technical Specification
| Model | IF-FYP6 | IF-FYP7 | IF-FYP10 |
|---|---|---|---|
|
Cutting sponge size |
L2000 * W1500 * H1200mm(4pcs) |
L2000 *W1500 * H1200mm(5pcs) |
L2000 * W1500 * H1200mm (8pcs) |
|
Cutting sponge thickness |
2-150mm |
2-150mm |
2-150mm |
|
Worktable turning speed |
0-3.5r/min |
0-3.5r/min |
0-2.5r/min |
|
Worktable diameter |
®6m |
®7m |
®10.5m |
|
Blade length |
8940mm |
10000mm |
10380mm |
|
Total power |
8.92kw |
8.92kw |
10.52kw |
|
Machine external size |
L7000 * W6500 * H2500mm |
L7500 * W7000 * H2500mm |
L11500 * W11000 * H2500mm |
Product Feature
√ Various table diameters are available for optimal utilization of the machine
√ Main motor is stable and noiseless
√ Rotation speed is adjustable
√ Precise and efficient cutting tools
√ Accurate cutting results
√ Highly accurate digital thickness control equipment

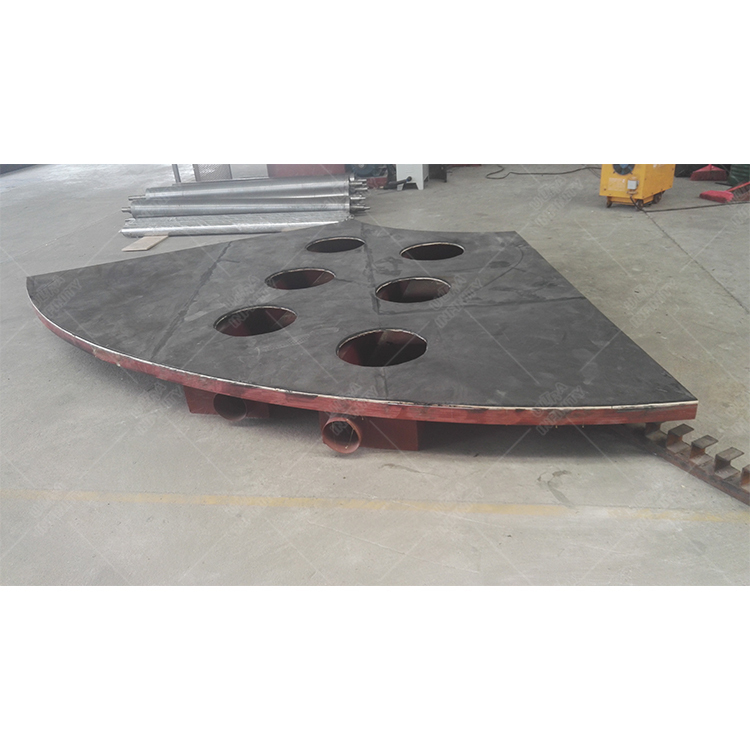

√ Specially designed carousel type cutting table
√ Cutting with high precision
√ Less movement of the material
√ High production speed and easy operation
