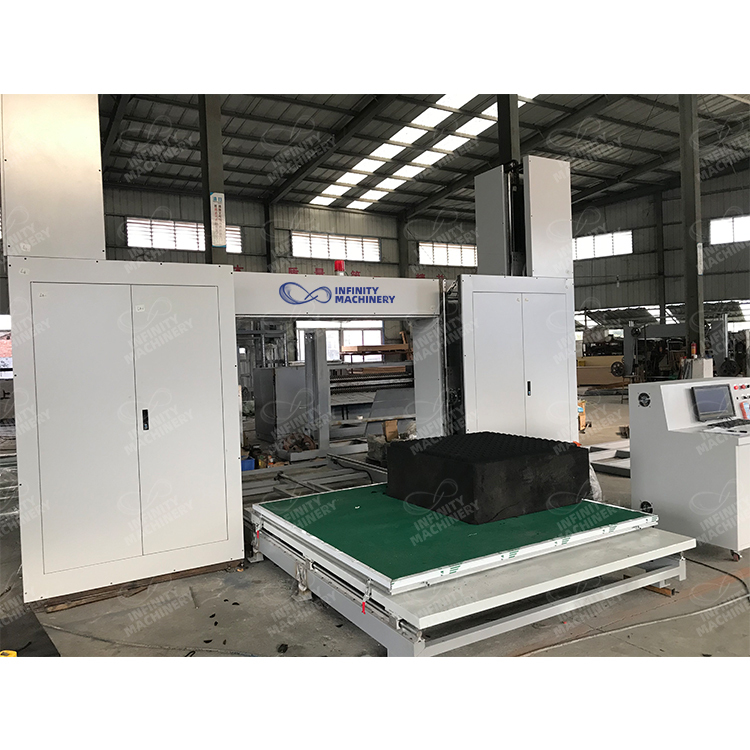

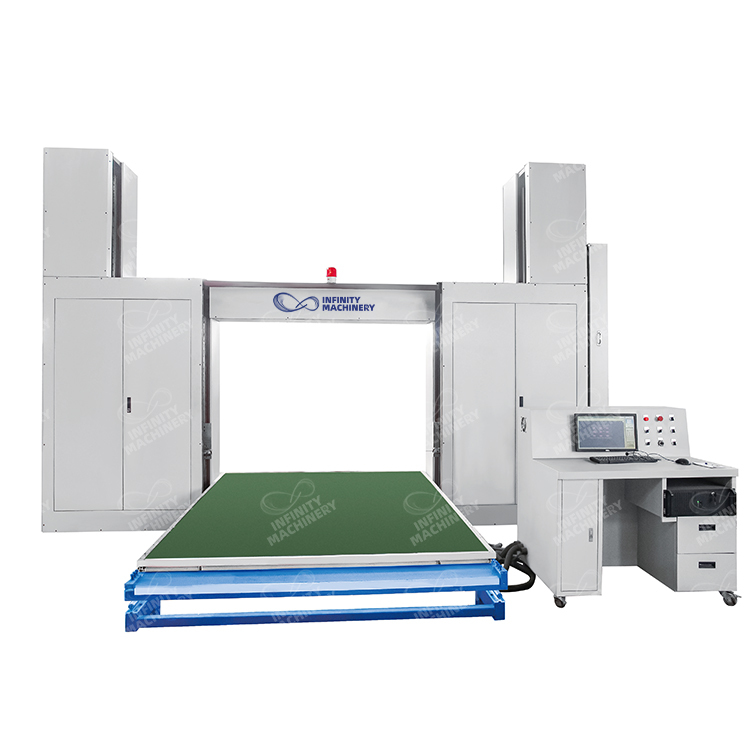

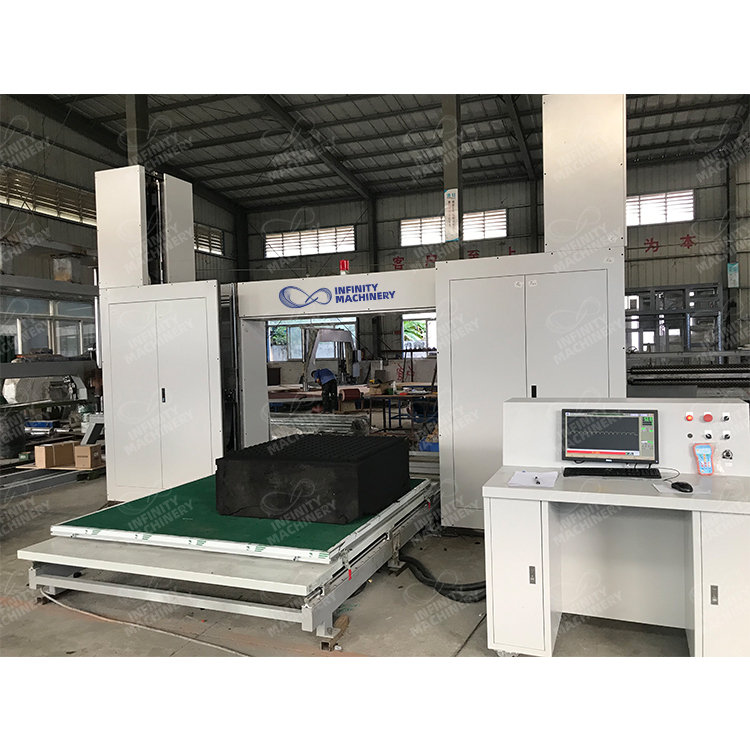

IF-CNCVH CNC Circular Contour Cutting Machine (Horizontal blade)

Name: IF-CNCVH CNC Circular Contour Cutting Machine (Horizontal blade)
Brand: Infinityfoammachinery
SKU: IF-CNCVH
Availability: InStock
Rating: 5 (1 reviews)

Model: IF-CNCVH
Application: Mattress Foam
Brand Name: Infinity Machinery
Place of origin: Guangzhou city, China
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set
Price Term: FOB, C&F, CIF (optional)
Payment Terms: T/T
Packaging Details: Film Packing/Wooden Case
Time of Delivery: 7~15 working days

GET A QUOTE

SPECIFICATION

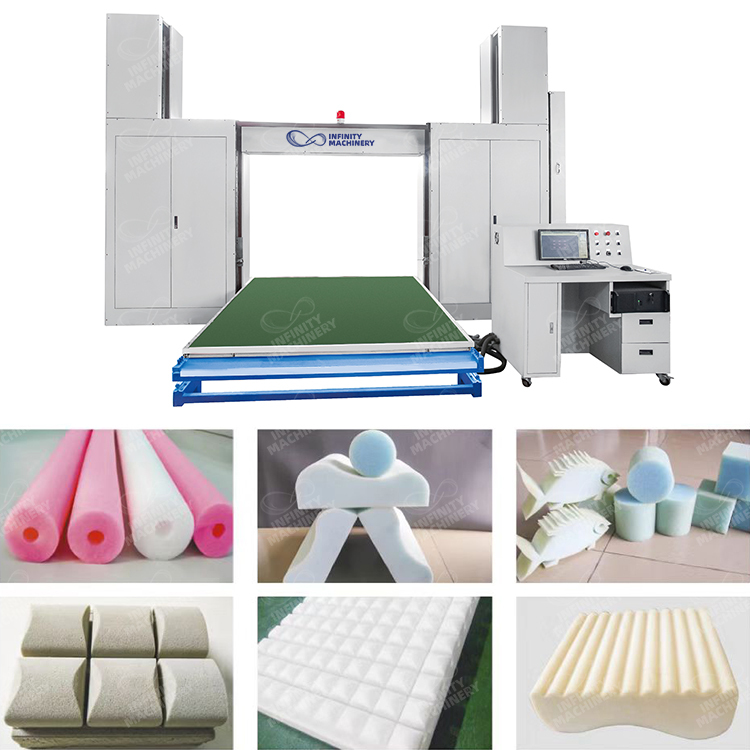

This machine is mainly designed for Cutting foam blocks into different foam shape, such as pillow, cushion , or any other shapes etc.

This machine adopts highly automated and flexible PC control system, by control command of X,Y,C axis setting by PC system, fully automatic cutting by tracking the graphic in PC, adopt servo driver system and high-precision guide rails are used to achieve high-precision processing, use continuous blade with low noise. (Optional automatic pressure roller system)

The machine can be designed according to customer's specifications (size of table etc.)

It is used in the manufacturing of furniture, Mattress, pillows processing etc.

Technical Specification

Model	IF-CNCVH
Cutting foam size	L2000 x W2000 x H1200mm
Cutting speed	0-30m/min (Adjustable)
Processing precision	±0.5mm
Cutting type	Circular cutting
Blade speed	500-1800m/min
Software	YCUT special foam cutting system
Control system	PC + multi-axis motion control card
Blade specifications	Saw tooth / blade (German materials)
Total power	6KW Servo motor
Machine external size	L4500 * W4300 * H2400mm
Foaming density	8-80Kg/m³
Output	260L/min
Mixing head power	11KW
Machine external size	L10000 x W7000 x H3500mm

Features:
1. Compact structure, easy in installation and maintenance.
2. Worktable with 360 Rotation
3. Horizontal blade
4. CNC PC Control system
5. High quality PLC
6. We can design the layout of the machine according to your requirements
7. The size of the working table can be adjusted according to your requirements.
8. Worldwide use in different industry of furniture, mattress etc.
8. Advanced world famous brand components are used in pneumatic parts, electrical parts and operating parts.
10. Technical supporting available ,we will provide the receipts.
