IF-HMVO1/HMVO2 Horizontal Mesh Belt Foam Cutting Machine (with suction fan)

Name: IF-HMVO1/HMVO2 Horizontal Mesh Belt Foam Cutting Machine (with suction fan)
Brand: Infinityfoammachinery
SKU: IF-HMVO1/HMVO2
Availability: InStock
Rating: 5 (1 reviews)

Model: IF-HMVO1/HMVO2
Application: Mattress Foam
Brand Name: Infinity Machinery
Place of origin: Guangzhou city, China
Certificates: ISO9001, IEC, CE
Minimum Order Quantity: 1 Set
Price Term: FOB, C&F, CIF (optional)
Payment Terms: L/C T/T
Packaging Details: Film Packing/Wooden Case
Time of Delivery: 7~15 working days

GET A QUOTE

SPECIFICATION

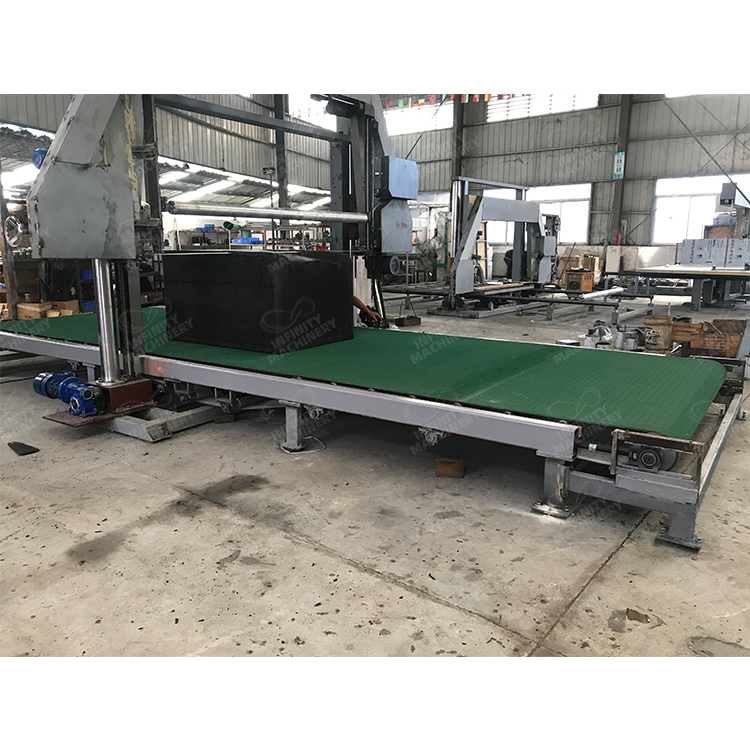

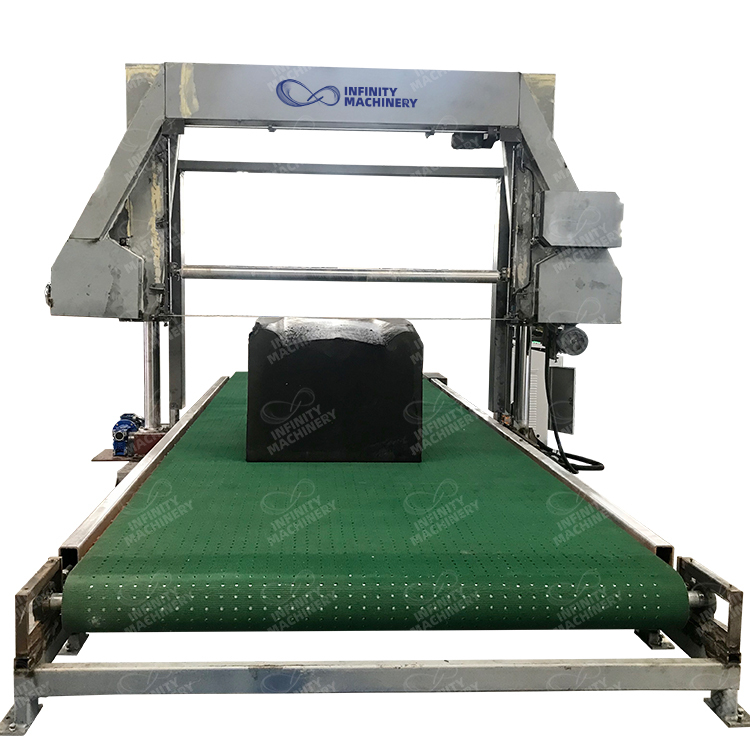

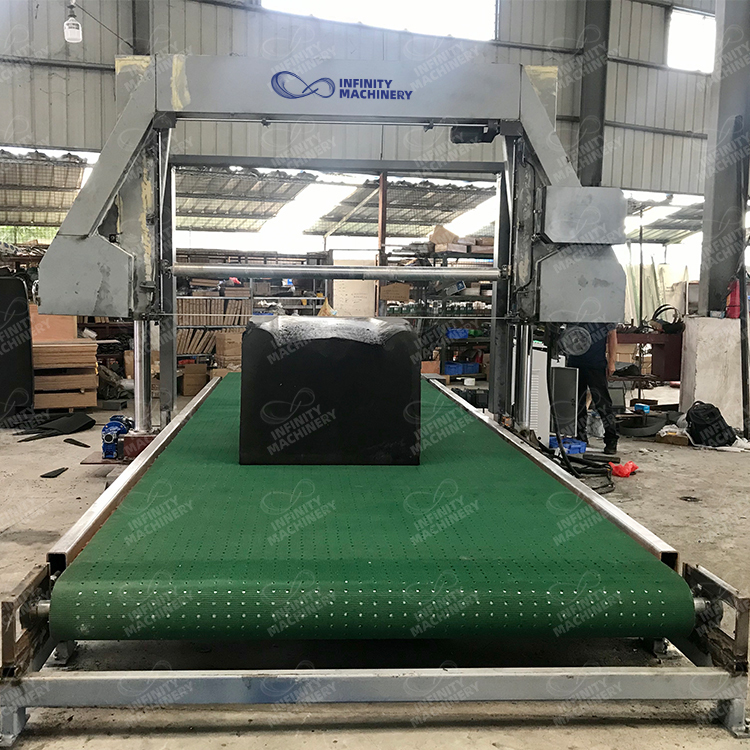

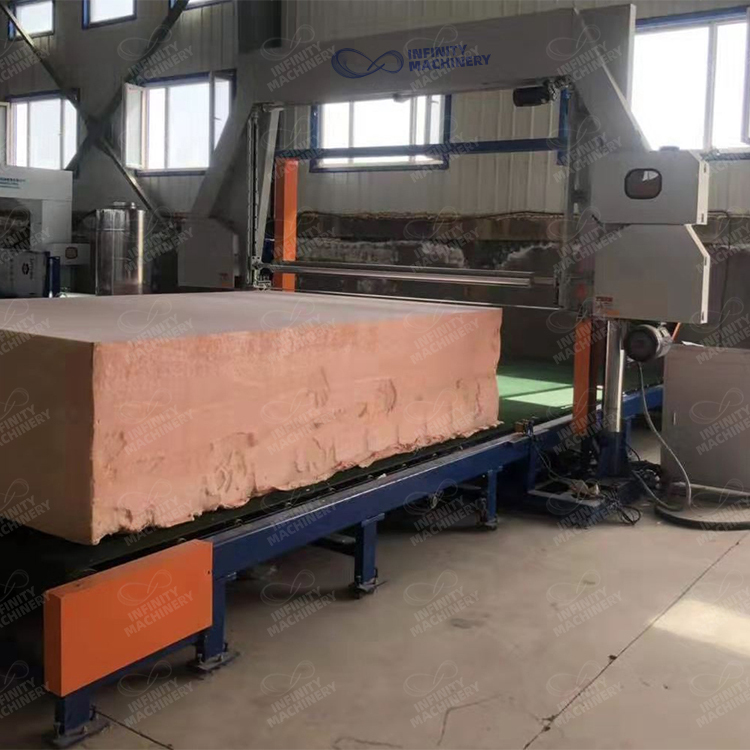

The machine mainly cuts the foam block into slices, adopts fully automatic digital control, setting the number by control box as needed to cut the thickness and density of foam, the working table adopts mesh belt roller and vacuum device, which is easy to load material and runs smoothly, equipped with pressure. roller to prevent the cut sponge from slipping.

Technical Specification

	IF-HMVO1	IF-HMVO2
Cutting foam size	L2000xW1650xH1200mm	L3000xW2150xH1200mm
Thickness of cutting foam	2-150mm	2-150mm
Treading speed	0-30m/min	0-30m/min
Blade length	8940mm	10440mm
Total power	12.72KW	12.72KW
Machine external size	L5000xW4000xH2500mm	L7000xW4500xH2500mm

Product Feature
1. Compact structure, easy for installation and maintenance.
2. The biscuit is finely cut with few errors.
3. Imported electrical components, more stable performance.

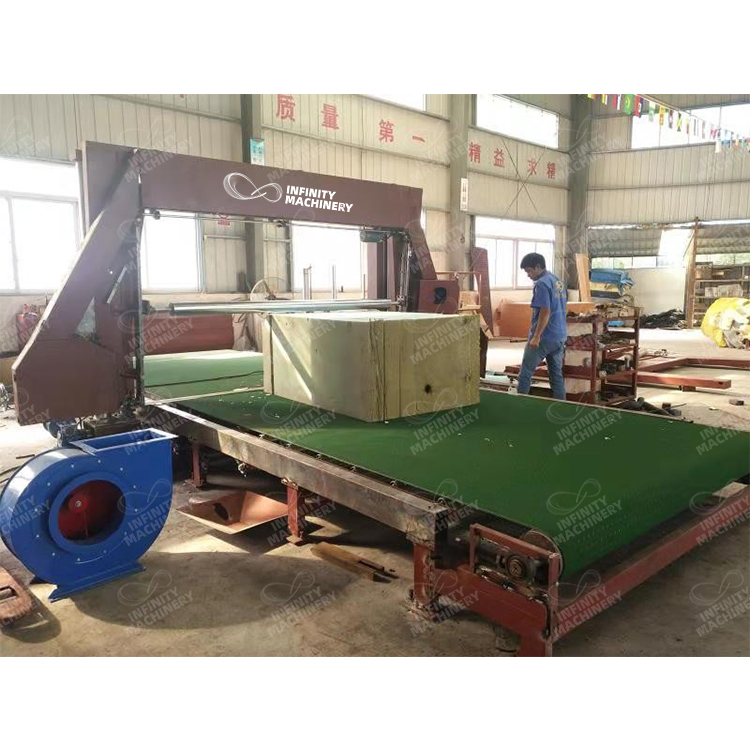

4. Equipped with air suction device and fixed sponge to make the cutting more accurate.

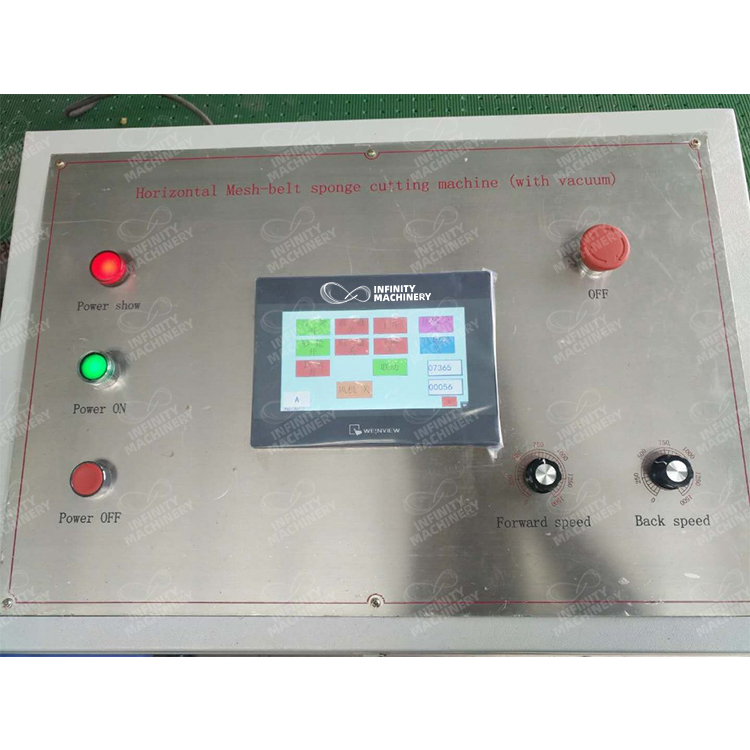

5. PLC and high quality touch screen.
